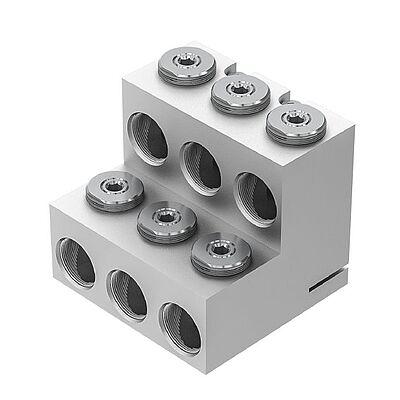

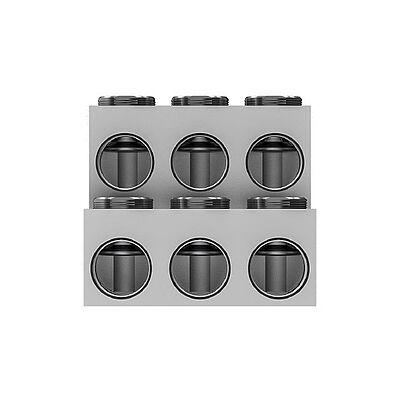

2DIREKT Six-wire transformer terminal block
for connection bolts according to DIN EN 50386.
For horizontal or vertical connection of Cu or Al cables to the secondary side of distribution transformers, with bolt connections per DIN EN 50386 (1 kV).
2DIREKT connection terminals are type-tested according to IEC 61238 with copper cables, 240 mm²
Material:
Body: high-strength aluminum alloy, electro-tinned
Screws: Steel, zinc-based coating
SW 8 for pressure screw, 55 Nm
SW 6 for cylinder screw, 25 Nm
No specifications have (yet) been assigned to this item.
No videos available.
No downloads available.
