ST cable clamp

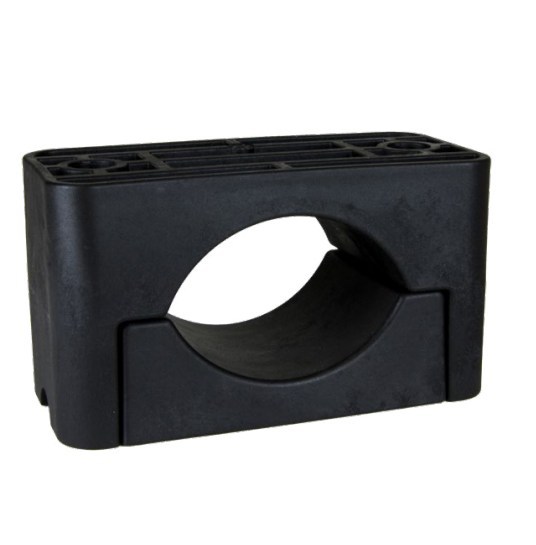

1-conductor cable clamp, type ST
Secure, durable fastening of single- and multi-core cables in low-, medium-, and high-voltage installations. Cable diameter 18–130 mm. Smart, two-part design for easy installation.
Key features

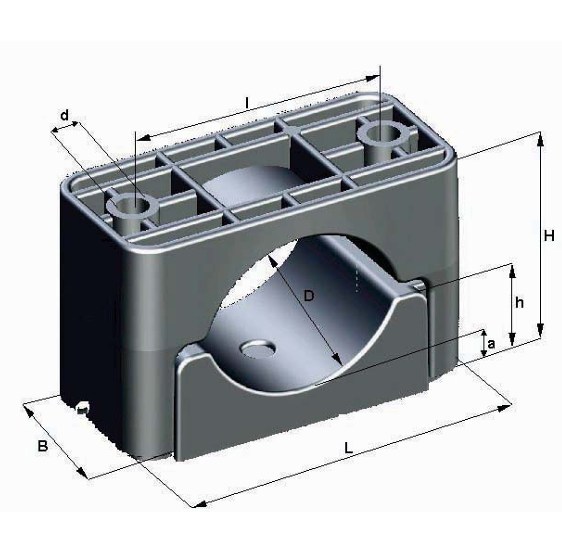

- Two-part design (upper and lower shell) with integrated nut chambers
- Fastening nuts engage precisely in the upper shell
- Three fastening holes per half-shell side; central hole for additional stability
- Torque specification: 5–8 Nm for consistent anchoring
Material, safety, and durability
- Material: black PA66 glass fiber reinforced
- Properties: halogen-free, self-extinguishing (UL 94 V-0), non-magnetic, non-conductive, no sharp edges
- Resistance: oil, heat, frost, UV, ozone, salt water, aggressive chemicals
- Temperature range: continuous -80 °C to +120 °C; short-term up to +220 °C
- Marking: robust, durable design
Applications
- Low, medium, and high-voltage systems
- Industrial and process plants
- Infrastructure projects (tunnels, bridges)
- Offshore/maritime applications
- Areas with high short-circuit resistance
Selection criteria
- Define diameter ranges Small to large cable diameters
- Overlaps: in overlaps, select the smaller clamp (e.g., ST 26-38 for 37 mm instead of ST 36-52)
Accessories
- On request, we can supply fastening materials (threaded bolts, hexagon head nuts, washers) in V2A in various designs.
