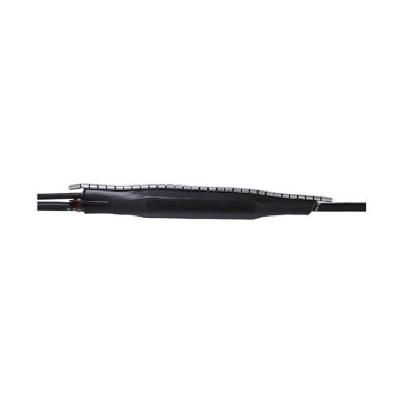

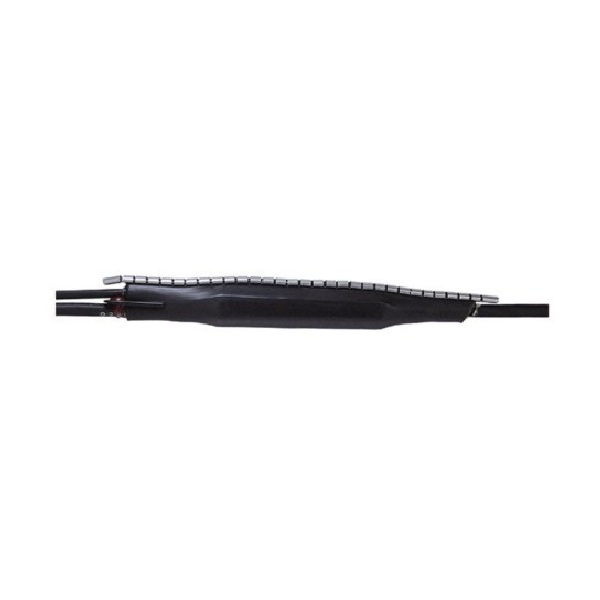

SMHF heat-shrinkable connection sleeve
for telecommunication cables
For connecting and producing cable branches of telecommunication cables with PVC and PE core insulation with laminated outer sheath (e.g. A-2YF(L)2Y, A-02YSF(L)2Y, A-PWE2Y, A-PM, A-PM2Y, A-PMbc). Suitable for wire connectors
Application/suitability
- Indoor (also with high exposure to moisture)
- Outdoor
- Ground
- water
- Installation ducts
- Empty conduits
Storage time/shelf life
- Can be stored indefinitely
Characteristics
- Compact dimensions
- With temperature indicator color
- Suitable for cut and uncut cables
- Can be dismantled (for repair purposes, switching)
- Resistant to chemical influences
- Resistant to alkaline earths
- Stabilized against UV rays
- Free from paint wetting impairment substances
- Halogen-free
- Waterproof and protected against moisture
Scope of delivery
Shrink sleeve, flexible sealing bar, protective insert, desiccant, shield connection cable with clamps, flame protection film, PVC insulating tape, cleaning cloth, emery cloth, installation instructions
Optional accessories
AVS wire connector (see connection technology)
MSFA assembly set (one set is required per branch)
