SGI 5MS End closure
for GKN 5-conductor cable shrink sleeve green-yellow
The SGI 5MS heat-shrinkable termination set is a reliable, heat-shrinkable termination solution for five-core GKN cables including concentric conductors. It was developed to safely insulate cable ends, mechanically stabilize them and permanently seal them against moisture, dirt and environmental influences - without the use of cable lugs. With a green/yellow shrink sleeve for standard-compliant protective conductor marking, the set offers a robust, durable and easy-to-install solution for indoor, outdoor and industrial applications.
Details of the SGI 5MS termination set
Area of application
- For GKN cables, 5-core, incl. concentric conductor
- Suitable for:
- Indoor installations
- Outdoor applications
- Industrial installations
- Power distribution systems
- Termination of cable ends without cable lugs
- Protection against:
- Moisture
- dirt
- UV radiation
- ozone
- mechanical stress

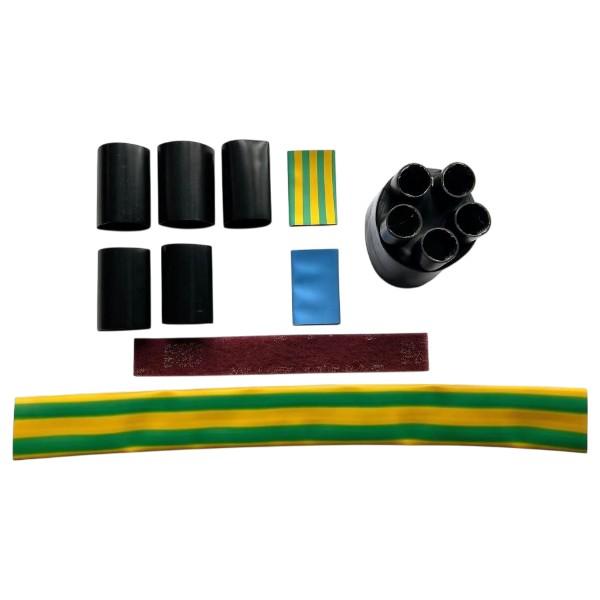

Scope of delivery
1. SGI 5MS shrink-on end fitting
- High-quality, radiation cross-linked shrink materials
- Electrical insulation of the conductor ends
- Mechanical stabilization of the cable termination
- Halogen-free and resistant to chemical influences
2. 5-finger splitting cap
- Heat-shrinkable
- With internal adhesive coating
- Seals the transition from the cable sheath to the five individual conductors
- Ensures a clean, tight sheath division
3. shrink sleeve green-yellow
- Length: 50 cm
- Thin-walled, without adhesive
- For clear protective conductor identification
- Flexible and easy to install
Technical properties
- High electrical insulation values
- Mechanically robust and vibration-resistant
- Permanently moisture-proof
- Suitable for continuous operation under nominal and test voltage
- Shrinks evenly and bubble-free
- Adapts to irregular cable geometries
- Simple installation with hot air tool
Advantages
- Complete set for 5-core GKN cable terminations
- Standard-compliant protective conductor marking
- Durable, maintenance-free and easy to install
- High operational safety in all environments
