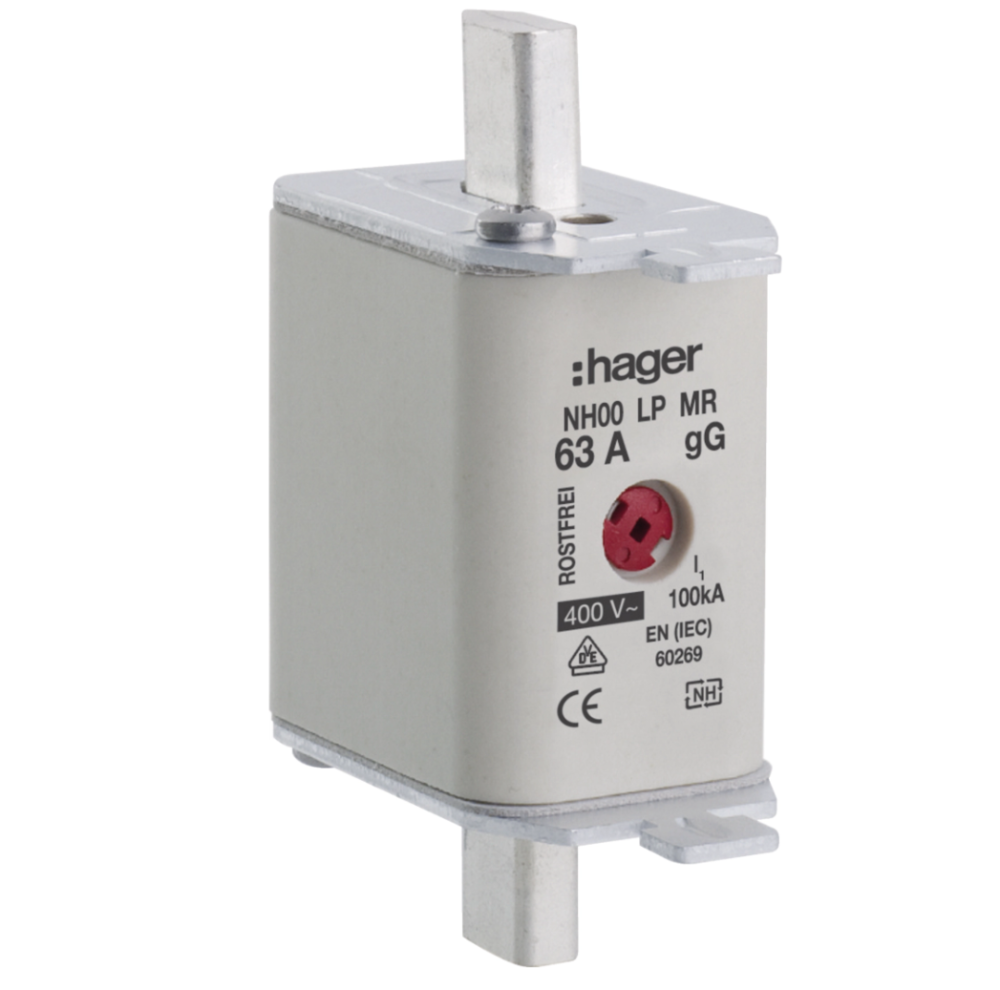

Hager NH Fuse DIN00 400 VAC gG/gL
Center-Marked, Stainless Steel
The Hager DIN00 gG/gL NH fuse is a low-voltage fuse designed to provide reliable protection for cables and electrical systems in power grid construction and building services engineering. Thanks to its full-range characteristic (gG/gL), it offers both overload and short-circuit protection.
Technical Data:
Type: NH Fuse DIN00
Rated Current: varies by variant
Rated Voltage: 400 VAC
Characteristic: gG/gL (full-range)
Indicator: Center-core indicator
Finish: Stainless steel
Dimensions:
Height: 79 mm
Width: 30 mm
Depth: 59 mm
| Architecture | |
|---|---|
| gG | NH00 |
| Sicherungscharakteristik | gG |
| Fuse | |
| NH00 | check |
| Voltage | |
| Versorgungsspanungsart | AC |
| Bemessungsbetriebsspannung Ue | 400 - 400 V |
| Bemessungsspannung bei AC 50 Hz | 400 - 400 V |
| Main electrical attributes | |
| Ausschaltvermögen Icn AC nach IEC60898-1 | 100 kA |
| Power | |
| Gesamtverlustleistung unter Nennstrom | 6A / 1.4W 160A / 9.1W |
| Dimensions | |
| Höhe | 79mm |
| Breite | 30mm |
| Tiefe | 59mm |
* All information without guarantee. Subject to technical changes and scope of delivery.
