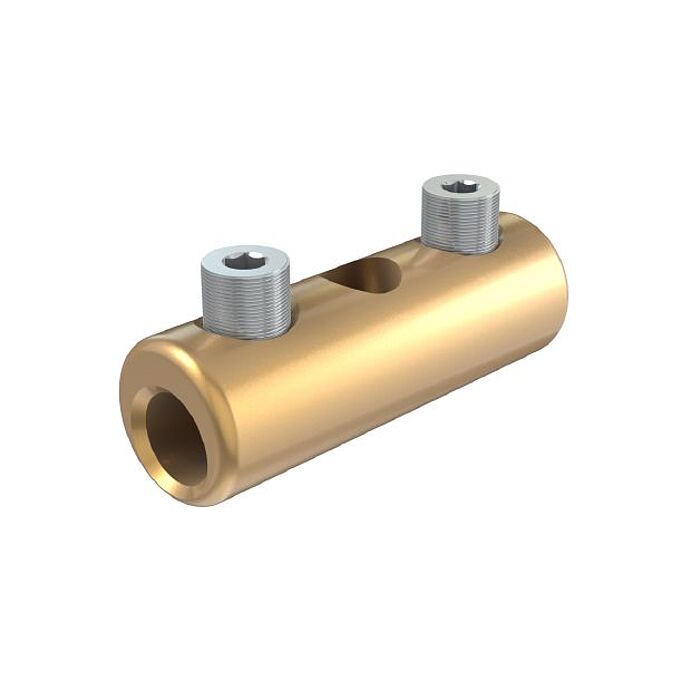

LV low voltage connector
Various sizes and designs
According to data sheets
Note: Delivery availability, partly from stock, replacement approx. 3 weeks
The low-voltage connectors meet the requirements of DIN SPEC 47640 and are suitable for all conductor materials and conductor types of conductor classes 1 and 2.
The connectors can be heat-shrunk without reworking.
Thanks to the new, large, heart-shaped conductor channel, the bolts are flush with the straight upper edge of the conductor channel.
This makes it easier to insert crushed or protruding conductor ends and prevents the individual wires from getting caught or snagged.
The rotating friction washer on the underside of the bolts prevents strand damage during installation and ensures optimum contact forces over the entire service life of the connection, regardless of the conductor material and shape.
The low-voltage connectors are mechanically and electrically tested in accordance with IEC 61238-1-1 Class A.
Advantages:
For all conductor materials and designs, including 120° sector
Generously dimensioned conductor channel
High contact force with low tightening torque
Generous clearance behind the bolt for safe conductor routing
No damage to individual wires
Installation with standard tools
