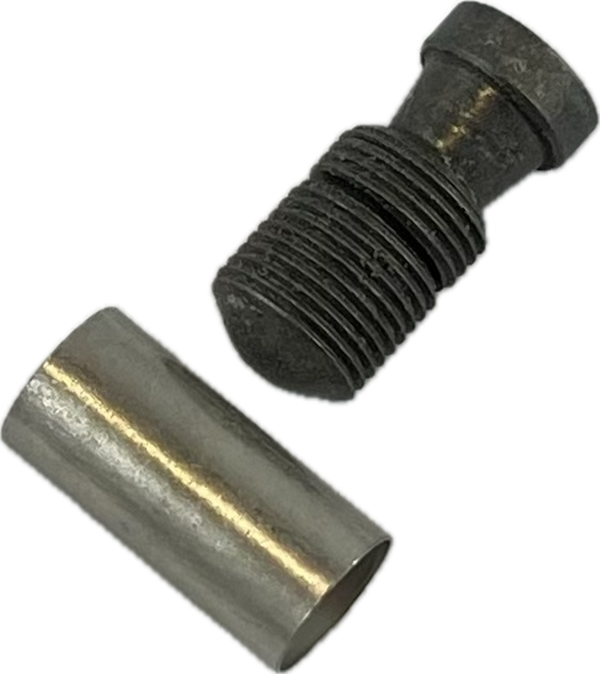

Flex Conductor Exchange Set – Sleeve
for AMV Connector with Flex Cable – Sleeve for Cable Lug
The Flex Conductor Exchange Set, Class 5, is designed for the safe and reliable connection of a flexible cable with an AMV connector or a TMBC cable lug.
It includes a high‑quality sleeve as well as the matching exchange screw set and is specifically designed for flexible conductors.
Material
- Screws: Brass
- Sleeve: Copper
Surface Finish
- Screws: Electro‑tinned, additionally protected with special coating
- Sleeve: Electro‑tinned
Design
- Screws: Dual shear‑off head screws for defined contact force
Scope of Delivery
- Screw(s)
- Sleeve
- Installation instructions
- Exchange screw set for one cable lug
Note
- Only the installation instructions included with the set are valid.
- The centering inserts supplied with the respective AMV product must be used.
| Contents of the package | |
|---|---|
| Set à 1 piece | check |
* All information without guarantee. Subject to technical changes and scope of delivery.
