GKN termination with PK
GKN 3x25-95mm2 set with cable lug
The GKN termination with PK is a reliable heat-shrink termination set for GKN cables with 3×25-95 mm², including concentric conductor. The set includes matching split caps, color-coded heat-shrink tubing for clear conductor identification and compression cable lugs for a secure electrical connection. It is ideal for use in power distribution systems, junction boxes (HAK) and industrial installations.
Details of the GKN termination with PK (3×25-95 mm²)
Heat-shrink termination for GKN 3x25-95mm2
(4 conductor GKN incl. concentric conductor)
with split caps and colored heat-shrinkable sleeves for conductor identification

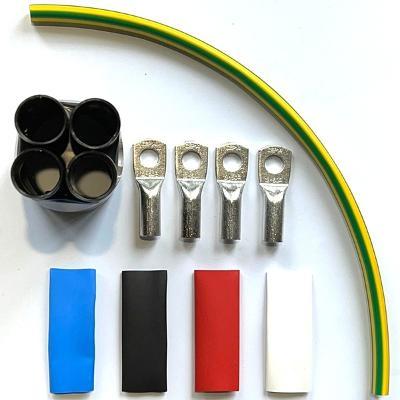

Set includes:
1 x SEH4 splitting cap (according to the cable cross-section)
1 x heat shrink medium-walled without glue yellow-green thin-walled (40cm)
1 x heat shrinkthin-walled without glue black / red / white / blue (8cm each)
4 x compression cable lug (25/8, 50/12, 95/12 according to the cable cross-section)
Note for HAK plus additionally:
1 x SEH4 splitting cap (according to the cable cross-section)
1 x heat shrink medium-walled without glue yellow-green thin-walled (40cm)
1 x heat shrinkthin-walled without glue black / red / white / blue (8cm each)
