GKN termination
Set GKN 3x 1x150 -240mm2 without cable lug
The GKN termination for 3× single-core GKN cables (150-240 mm²) is a reliable heat-shrink termination for the secure termination of medium-voltage single-core cables. The set contains high-quality split caps and color-coded heat-shrinkable sleeves for clear conductor identification. It offers robust electrical insulation, mechanical protection and a durable seal - ideal for use in power distribution systems and industrial installations.
Details of the GKN termination (3× 1×150-240 mm²)
Product description
- Heat-shrink termination for single-conductor GKN cables
- Suitable for conductor cross-sections 150-240 mm²
- With coloured shrink sleeves for conductor identification
- Including split caps for secure, tight termination

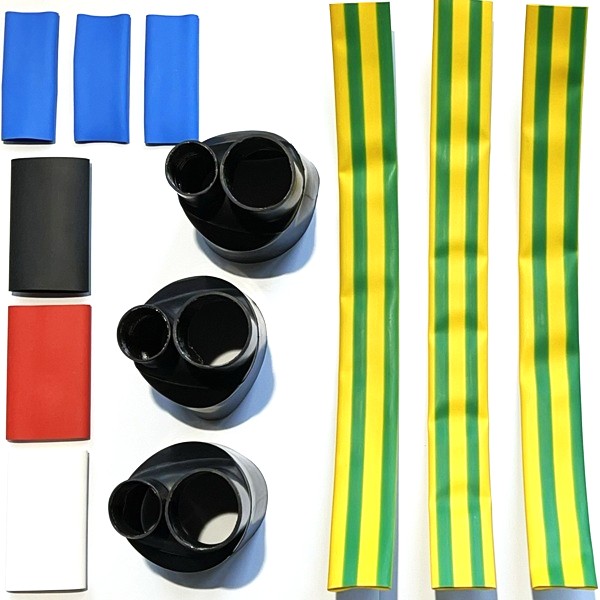

Scope of delivery - Set for 3 conductors
Splitting caps
-3 × SEH2 60-20
For secure, tight termination of the sheath division
Heat-shrink tubing
-3 × medium-walled without glue, yellow-green, thin-walled (40 cm each)
Protection and identification tubing for earthing/protective conductor areas
- 1 × thin-walled without glue, black / red / white (9 cm each)
Colour coding for conductor identification
- 1 × thin-walled without glue, blue (3 × 9 cm)
Additional identification for neutral conductors or specific phase markings
Properties
- Robust electrical insulation
- Mechanical protection thanks to high-quality heat-shrink materials
- Secure sealing against moisture and environmental influences
- Colour-coded heat-shrink tubing for clear conductor assignment
- Easy installation thanks to heat-shrink technology
