Connecting sleeve GKN SV

Connecting sleeve GKN SV
Set incl. screw connector GKN 1 conductor 95-300mm2

The GKN SV connecting sleeve is a robust, heat-shrinkable set for the secure electrical and mechanical connection of single-core plastic cables with concentric conductors in the 95-300 mm² cross-section range. Thanks to the integrated Sicon screw connector and high-quality heat-shrinkable materials, the joint ensures a permanently tight, corrosion-free and reliable connection - ideal for indoor, outdoor and underground power distribution systems.

Details of the GKN SV connection sleeve (1× 95-300 mm²)

Area of application

• Connection of single-core GKN cables
• Suitable for cross-sections 95-300 mm²
• For installations in:
• Indoors
• Outdoor
• underground
• Industrial plants
• Power distribution networks

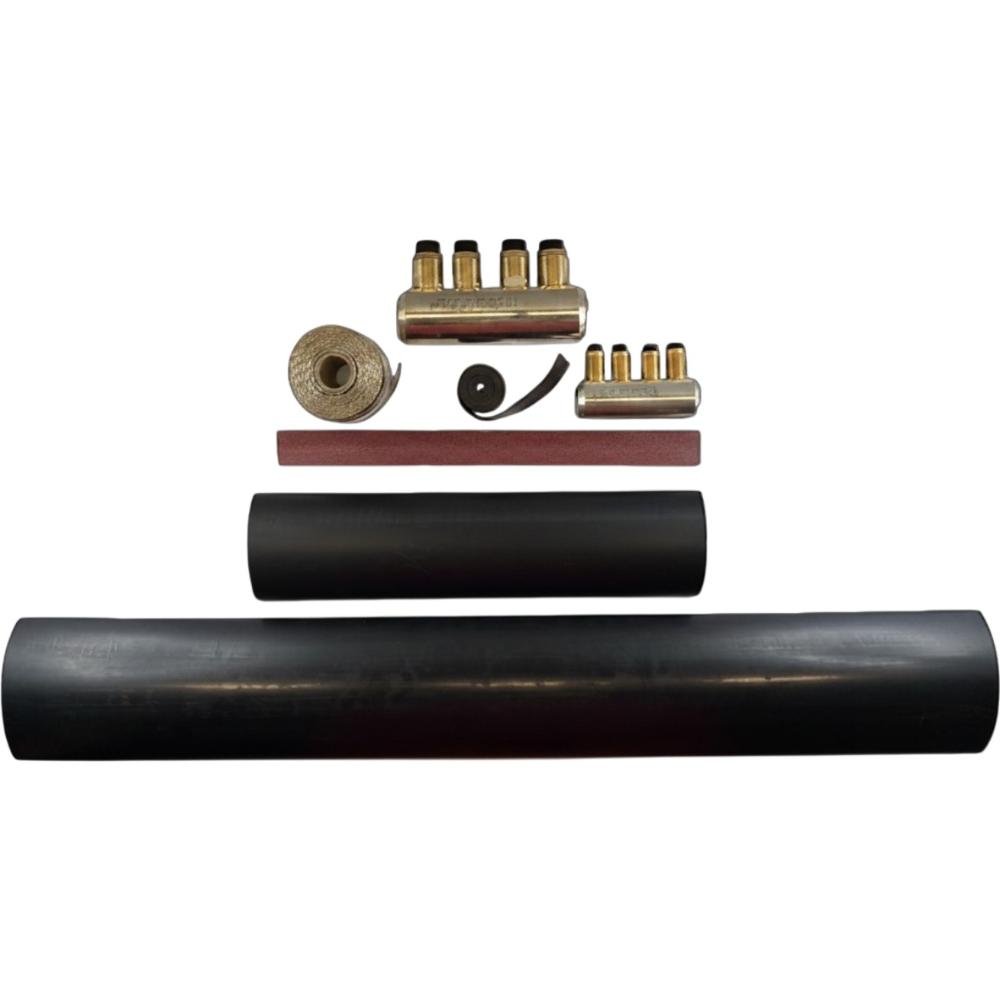

Scope of delivery

1st Sicon screw connector

• Universal for copper and aluminum conductors
• Vibration-resistant connection
• No special crimping tool required
• Mechanically stable and corrosion-free contacting
• Ideal for large cross-section ranges (95-300 mm²)

2. heat-shrinkable sleeve body

• Radiation cross-linked polyolefin
• Inner coating with hot-melt adhesive for complete sealing
• Adapts to irregular cable geometries
• High mechanical strength
• Mechanical protection against tension, pressure and abrasion

Technical properties

• High electrical insulation values
• Transverse watertight and moisture-resistant
• Resistant to
  • Chemical influences
  • Alkaline earths
  • UV radiation
  • Ozone
• Halogen-free and free from paint wetting impairment substances
• Suitable for continuous operation under nominal and test voltage
• Simple installation with hot air tool

Advantages

• Complete set incl. screw connector
• Quick installation without pressing tools
• Permanently tight and mechanically stable connection
• Universally applicable for large cross-sectional areas
• High operational reliability in all environments
